BFO Select

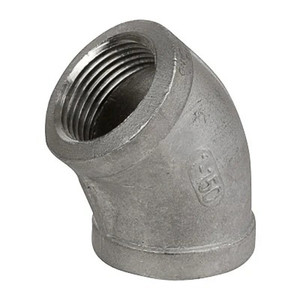

1/8 in. NPT Threaded - 45 Degree Elbow - 150# Cast 316 Stainless Steel Pipe Fitting

(No reviews yet) Write a Review
0.07 LBS


Material Specifications:

45-degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Our high quality standard pattern 150 lb rated stainless steel threaded pipe fittings are manufactured to the highest standards. All stainless steel pipe fittings are monitored by quality control personnel for strict compliance with applicable standards & specifications. These stainless steel pipe fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fitting will prevent contamination making it useful to many professionals.

  • NPT and FNPT threads conform to ASME B1.20.1
  • Maximum Pressure: 300 psi @ 72° F
  • Maximum Steam Pressure: 150 psi @ 366° F
  • 304 stainless castings conform to ASTM A351 ACI Grade CF8
  • 316 stainless steel castings conform to ACI Grade CF8M
  • Manufacturing facility is ISO 9001:2008
  • Quality guarantee on all pipe fittings
  • For Use with Schedule 40 Pipe Nipples and 150# Flanges
End Connection:
NPT Threaded - ASME B1.20.1
Use with air, water, oil, natural gas, steam
MTRS / COC Available:
Both available upon request at time of order

Schedule B 7307.29.0090
ECCN 2B999
Country of Origin:
From Import (varies - subject to change - China/Phillipines/Taiwan/Other)

View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty
  • You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
  • Our products are warranted to be free of defects in material or workmanship upon delivery.
  • Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
  • No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
  • This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
  • Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

    Dimensions / Images:
  • Dimensions provided are for reference only and subject to change.
  • If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.
  • All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Returns: Need to Make a Return? Click Here

Shipping Policy
: View Shipping Policy Here
View AllClose

Additional Information

Size (inches):
.125 (1/8")
Material Type:
316 Stainless Steel
Product Type:
45° Elbow
Category Type:
Pipe Fittings
Pressure Rating (psi):
End Connection:
Weight (lbs):
From Import
