1/8 in. 90 Degree Elbow - 150# NPT Threaded 304 Stainless Steel Pipe Fitting

(No reviews yet) Write a Review
SKU:
1-A
MPN:
62100
Availability:
Available
Weight:
0.05 LBS
$3.00
Frequently bought together:

Description

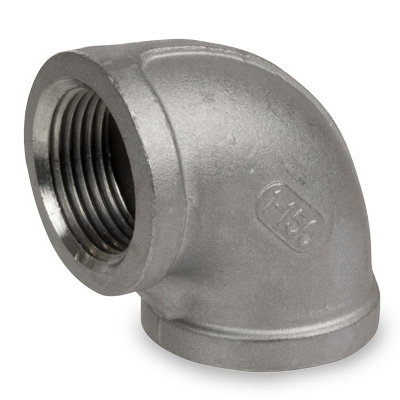

150# Stainless Steel Pipe Fitting 90 Degree Elbow NPT Threaded

90° Elbows - Heavy Pattern 150# Threaded Pipe Fittings - Cast

90 degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Our high quality standard pattern 150 lb rated stainless steel threaded pipe fittings are manufactured to the highest standards. All stainless steel pipe fittings are monitored by quality control personnel for strict compliance with applicable standards & specifications. These stainless steel pipe fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fitting will prevent contamination making it useful to many professionals.

  • Use with air, water, oil, natural gas, steam
  • NPT and FNPT threads conform to ASME B1.20.1
  • Maximum Pressure: 300 psi @ 72 F;150 psi @ 366 F for steam
  • Maximum Steam Pressure: 150 psi
  • Stainless castings conform to ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
  • Heavy Pattern 150# Threaded Fittings - Cast
  • Manufacturing facility is ISO 9001:2008
  • Quality guarantee on all pipe fittings
Size (inches) A Weight (lbs) 304 Stainless Steel
Part Number
316 Stainless Steel
Part Number
1/8" 0.71 0.05 1-A 18-M
1/4" 0.77 0.08 1-B 18-N
3/8" 0.94 0.12 1-C 18-O
1/2" 1.16 0.19 1-D 18-P
3/4" 1.26 0.30 1-E 18-Q
1" 1.44 0.52 1-F 18-R
1-1/4" 1.73 0.71 1-G 18-S
1-1/2" 1.91 1.07 1-H 18-T
2" 2.24 1.45 1-I 18-U
2-1/2" 2.70 3.26 1-J 18-V
3" 3.09 4.66 1-K 18-W
4" 3.82 7.05 1-L 18-X
*Dimensions are for reference only. If you require closer tolerances we recommend a custom machined solution.
View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty

You are entitled to quality products. If you find that the quality of your product is unacceptable Contact Us

Upon verification - we will replace or refund your order.

Our products are warranted to be free of defects in material or workmanship upon delivery. We will replace without charge products proved to have manufacturing defects. No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect. This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries. Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

Returns

Need to Make a Return? Click Here

Shipping Policy

View Shipping Policy Here

View AllClose

Additional Information

Size (inches):
.125 (1/8")
Material Type:
304 Stainless Steel
Product Type:
90° Elbow
Category:
Pipe Fittings
Pressure Rating (psi):
150
End Connection:
NPT
Weight (lbs):
0.05
Industry Crossover:
S3114E 001 || 4464K11 || K401-02 || SF4-L9001 || SSF304L9000
