BFO Select

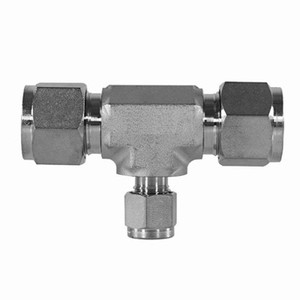

3/4 in. x 3/4 in. x 1-1/4 in. Tube O.D. - Reducing Union Tee - Double Ferrule - 316 Stainless Steel Compression Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 30-DTR12-12-20
- Availability:
- Available
- Weight:
- 0.03 LBS
Description
Applications:
- For use in compression, instrumentation, vacuum, gas, cryogenic, high pressure and temperature service.
- These tube fittings are designed using industrial codes and specifications with additional cutting edge engineering on swaging action and sealing integrity.
- Offers excellent leak-fee sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration and many other stringent applications.
- All tube fittings are double ferrule and consist of a body, front ferrule, back ferrule and nut.
- Stainless steel bar stock conforms to ASTM A276, ASTM 479, ASME SA479 and JIS GA 303
- Stainless steel forged fittings conform to ASTM A182, ASME SA 182 and JIS G3214
- The pressure rating of a BFO Tube Fitting is rated to the working pressure of the connective tubing.
Connection:
Reducing tube union tees for connecting fractional tube - this is a reducing tee with reducing connections one or more tube end.
Maximum Operating Pressure:
11,000 psi (757 bar) @ 100°F (38°C)
Operating Temperature Range:
325°F (-198°C) to 1200°F (648°C)
Size:
OD 1/16 - 2 inch, OD 2mm - 38mm
Ferrule:
Double Ferrule
Pipe End Pressure Ratings:
Many tube fittings have a male or female pipe end. These ends sometimes have a lower pressure rating than the pressure rating of the tube fitting end. The ratings shown above are based on ASME B31.3-1999.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
PDF / Specs / Brochure* These tube fittings intermix and interchange with all major brands of compression tube fittings.
* Dimensions are for reference only and subject to change.
Additional Information
Size (inches): |
.750 (3/4") |
Size (inches): |
1.25 (1-1/4") |
Material Type: |
316 Stainless Steel |
Product Type: |
Reducing Union Tee |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Additional: |
From Import |
