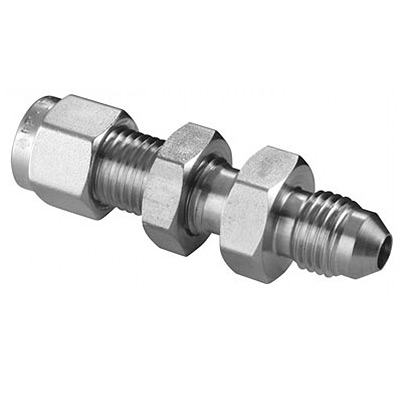

1 in. x 1 in. AN Bulkhead Union - 316 Stainless Steel Compression Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 30-ABU-1-1
- Availability:
- Available
- Weight:
- 0.90 LBS
Description
Applications:
Instrumentation, Vacuum, Gas, Cryogenic, High pressure and Temperature Service.
Pressure 500 psig (34.5 bar) or higher is considered generally high pressure. In the high pressure system scratches, draw mark, nicks, flats spots and dirt on tubing may cause leakage.
Cryogenic temperature is considered to be temperatures below -100°F (-73°C).
SS316 Stainless Steel provide highly reliable performance on cryogenic application
Maximum Operating Pressure:
11,000 psi (757 bar) @ 100°F(38°C)
Operating Temperature Range:
325°F(-198°C) to 1200°F(648°C)
Size:
OD 1/16 - 2 inch, OD 2mm - 38mm
Style:
Double Ferrule Compression Tube Fittings

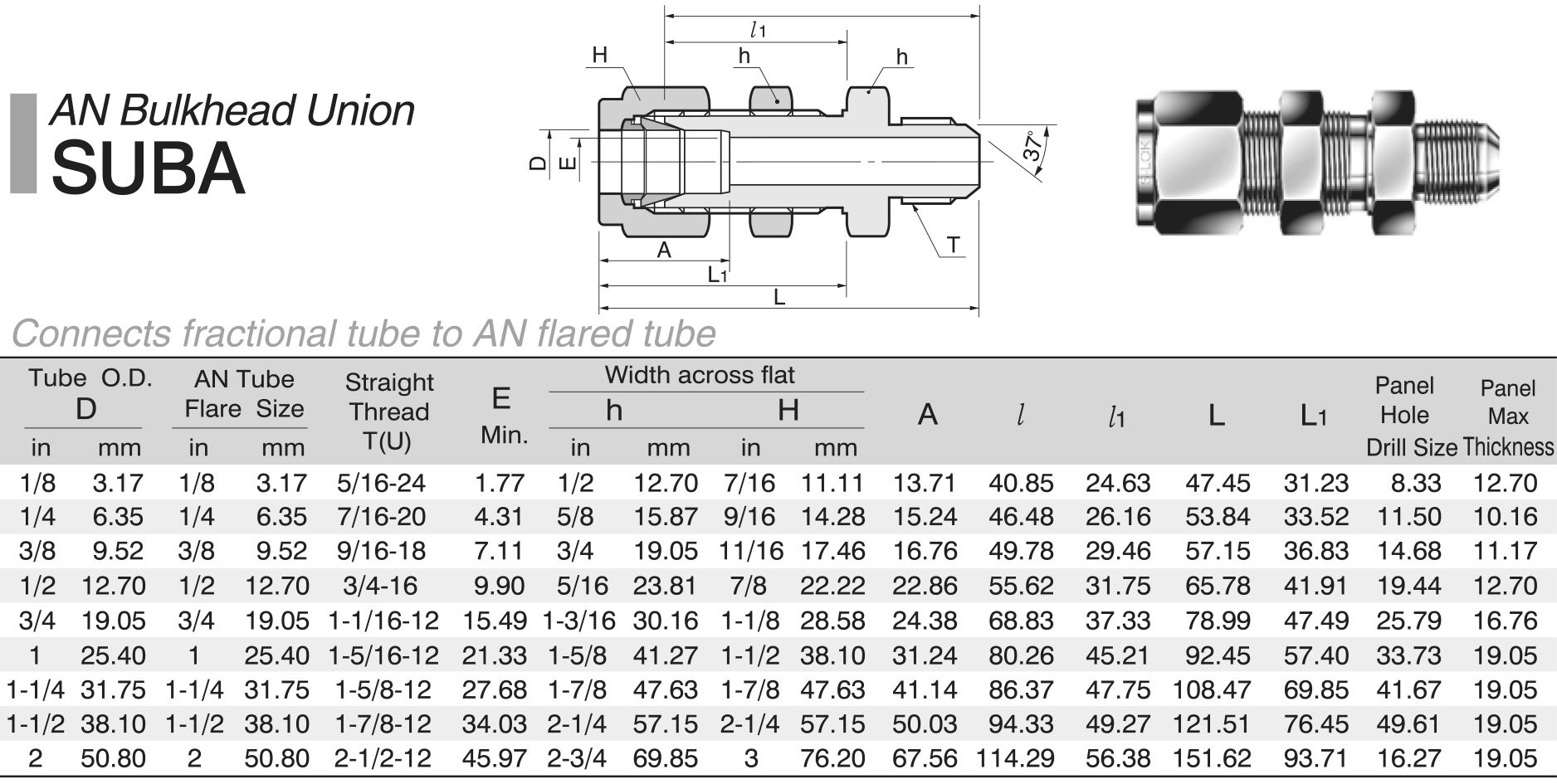

PDF / Specs / BrochureAdditional Information
Size (inches): |
1.00 (1") |
Material Type: |
316 Stainless Steel |
Product Type: |
AN Bulkhead Union |
Category: |
Compression Fittings |
Category: |
Instrumentation Fittings |
Category: |
Tube Fittings |
Weight (lbs): |
0.90 |
Additional: |
From Import |
