BFO Select
3/8 in. x 1/8 in. Male NPT Threaded - Reducing Hex Nipple - Reducing Bore - 316 Stainless Steel High Pressure Instrumentation Pipe Fitting (PSIG=7,600)
(No reviews yet)
Write a Review
- SKU:
- 4050-OM-RHN
- Availability:
- Available
- Weight:
- 0.20 LBS
Frequently bought together:
Description
Material Specifications:
End Connection: Male NPT x Male NPT
Features: Standard High Pressure Instrumentation Threaded Fittings:
*** ID Features: REDUCING BORE **
Features: Standard High Pressure Instrumentation Threaded Fittings:
*** ID Features: REDUCING BORE **
- Wrench flat body design allowing standard hex wrench assembly
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
- Fine pipe thread construction equals or exceeds the requirement of ASME B1.20.1 to ensure maximum thread engagement.
- Male pipe threads capped for protection from damages.
- Fitting materials available in SS316, Brass and Carbon Steel.
- Listed with Diameter x OAL (Overall Length)

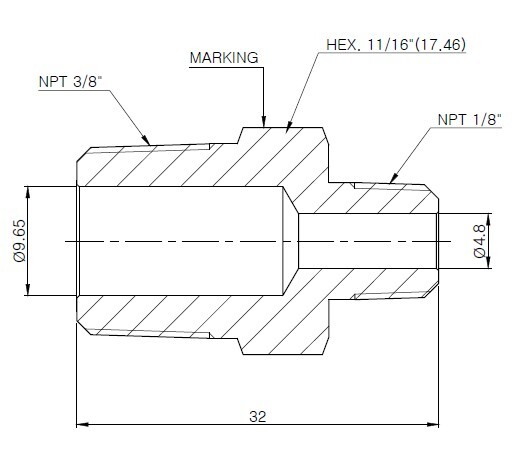

* SPECIFICATION
1. DESIGN STANDARD: ASME B31.3
2. THREAD STANDARD
NPT : ASME B1.20.1
3. DIMENSIONS ARE FOR REFERENCE ONLY AND ARE SUBJECT TO CHANGE.
4. MATERIAL : ASTM A 276 TYPE316
5. UNIT: mm
Threaded Fittings Standard Rating:
These Standard Rating Fittings are designed to the requirements of ASME B31.3 process piping code.
These pipe thread sizes are available 1/8 in. to 1 in. NPT
These pipe thread sizes are available 1/8 in. to 1 in. NPT
Additional:
From Import
PDF / Specs / BrochureAdditional Information
Size (inches): |
.375 (3/8") |
Size (inches): |
.125 (1/8") |
Material Type: |
316 Stainless Steel |
Product Type: |
Reducing Hex Nipple |
Category Type: |
High Pressure Fittings |
Category Type: |
Instrumentation Fittings |
End Connection: |
NPT |
Additional: |
From Import |
Industry Crossover: |
GNR-6-2N-S |
Pressure Rating (psi): |
7600 |
Brand: |
BFO Select |
