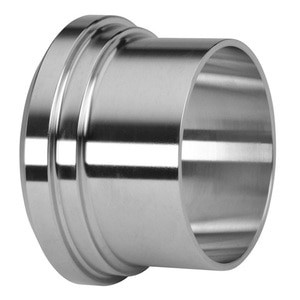

Long Plain Bevel Seat Ferrules (14A)
Long Plain Bevel Seat Ferrules (14A) 3-A Sanitary Certified Stainless Steel Fittings
Bevel Seat Ferrule Drawings / Dimensions
This ferrule is used to adapted butt weld sanitary connections to bevel seat connections with a bevel seat plain end x weld end connection.
Bevel Seat Fittings are used on process equipment and piping to ensure rigidity of the system. Bevel Seat Unions consist of a Threaded Bevel Ferrule mated with a Plain Bevel Ferrule. Hex Union Nuts are used to complete the union.
- Available in 304 and 316L Stainless Steel
- Surface Finish: 32Ra
- Polished 150 grit outside (OD) 180 grit inside (ID)
- Wall Thickness:
1" through 3" = 0.065”
4" = 0.083” - 3-A Sanitary Certified
Part Number Cross Reference:
| Wayland | Alfa Laval | Dixon | VNE | Topline | Sanitary Solutions |
| W14A | L14A7 | 14A | 14A | L14A7 | SS14A |
-
DescriptionSKUPrice
-
BF414A-1$11.36
-
1-1/2 in. Tube OD - Long Plain Bevel Seat Ferrule - 14A - 304 Stainless Steel Sanitary Fitting (3-A)
BF414A-15$14.04 -
BF414A-2$19.85
-
2-1/2 in. Tube OD - Long Plain Bevel Seat Ferrule - 14A - 304 Stainless Steel Sanitary Fitting (3-A)
BF414A-25$27.90 -
BF414A-3$34.49
-
BF414A-4$50.29
-
BF614A-1$14.22
-
BF614A-15$21.56
-
BF614A-2$29.81
-
BF614A-25$40.84
-
BF614A-3$50.87
-
BF614A-4$71.60
