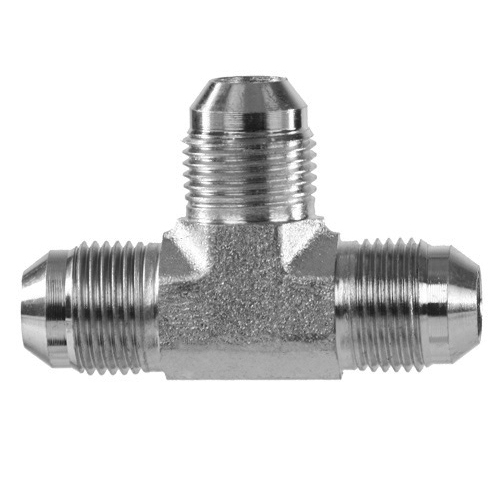

3/4 in. MJIC x 3/4 in. MJIC x 3/4 in. MJIC - Male JIC Union Tee - 316 Stainless Steel Hydraulic JIC 37° Flare Tube Fitting Adapter
(No reviews yet)
Write a Review
- SKU:
- BFSS2603-12-12-12
- MPN:
- SS2603-12-12-12
- Availability:
- Available
- Weight:
- 0.34 LBS
Description
Applications::
- The hydraulic tube fittings conform to the performance requirements specified in SAE J514, SAE J518, SAE J1453, SAE J1926/ISO 11926 and related standards.
- The working pressure ratings listed below are based on a 4:1 design factor for minimum burst.
- As specified in SAE J514, these are dynamic pressure ratings and the fittings are capable of passing a cyclic endurance (impulse) test for one million cycles at 133% of the corresponding working pressure.
- The rated working pressure for any fitting is based on the lowest pressure rated fitting end.
- JIC Tube FLARE 37° 316 Stainless Steel Adapters and Fittings
- Hydraulic Hose Adapters
Connection::
MJIC Tube x MJIC Tube x MJIC Tube
3 Equal Sized Male Ends - Union Tee
37° Flare (JIC) Threads
When the straight threads are engaged, the 37° male seat seals on the 37° female flare seat.
| Dash Size | Inch Size | Thread Size | Male Thread (O.D.) | Female Thread (I.D.) |
|---|---|---|---|---|
| 2 | 1/8" | 1/8-27 | .31 | .27 |
| 3 | 3/16" | 3/8-24 | .38 | .34 |
| 4 | 1/4" | 7/16-20 | .44 | .39 |
| 5 | 5/16 | 12-20 | .5 | .45 |
| 6 | 3/8" | 9/16-18 | .56 | .51 |
| 8 | 1/2" | 3/4-16 | .75 | .67 |
| 10 | 5/8 | 7/8-14 | .88 | .8 |
| 12 | 3/4" | 3/4-14 | 1.06 | .98 |
| 14 | 7/8 | 1 3/16-12 | 1.18 | 1.09 |
| 16 | 1" | 1 5/16-12 | 1.31 | 1.22 |
| 20 | 1 1/4" | 1 5/8-12 | 1.63 | 1.54 |
| 24 | 1 1/2" | 1 7/8-12 | 1.88 | 1.79 |
| 32 | 2" | 2.5-12 | 2.5 | 2.41 |
PDF / Specs / Brochure::Additional Information
Size (inches): |
.750 (3/4") |
Material Type: |
316 Stainless Steel |
Product Type: |
JIC Union Tee |
Category Type: |
Hydraulic Adapters |
Category Type: |
JIC 37° Flare Fittings |
Weight (lbs): |
0.342 |
Additional: |
From Import |
