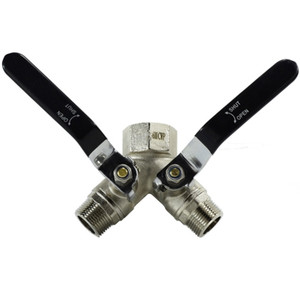

1 in. FIP x 3/4 in. MIP Connection, 600 psi WOG, 3 Way Wye Brass Ball Valve, Full Port, Non-Vented

(No reviews yet) Write a Review
SKU:
BFO947125
UPC:
947-125
Availability:
Available
$42.39

Description

View Sizing & Specifications

Designed for the portable air compressor industry,these valves control the flow of water,oil, and inert gases in two direction and are great for mixing and diverting.They have a single female inlet and two male outlets with two ball valves.

Valves are Brass Nickel Plated and have chrome-plated brass balls,brass blow-out proof stems, PTFE seats and seals and stainless steel lever handles with vinyl grips.

Vented valves has a drilled hole on the two valve balls and body that vents compressed air in the line when valve is closed. Connections: 1" NPT female inlet and 3/4" NPT male outlet.

  • Max.pressure: W.O.G. (water, oil, inert gas)
  • Unvented Valve: 600 psi @70°F
  • Vented Valve: 250 psi @70°F
  • W.S.P. (working steam pressure)
  • Unvented Valve: 150 psi @365°F
  • Vented Valve: Not related
  • Vacuum Rating: 29"Hg
  • Temperature Range: -40° to 365°F
  • Ports: Full
  • Made in China
  • Not lead free
  • </ul
View AllClose

Additional Information

Size (inches):
1.00 (1")
Material Type:
Brass
Product Type:
3 Way Wye Ball Valve
Category:
Industrial Valves
End Connection:
FIP x MIP
Port Type:
Full Port
Handle Type:
Lever Handle
WOG Rating (psi):
600
Weight (lbs):
1.03
