BFO Select

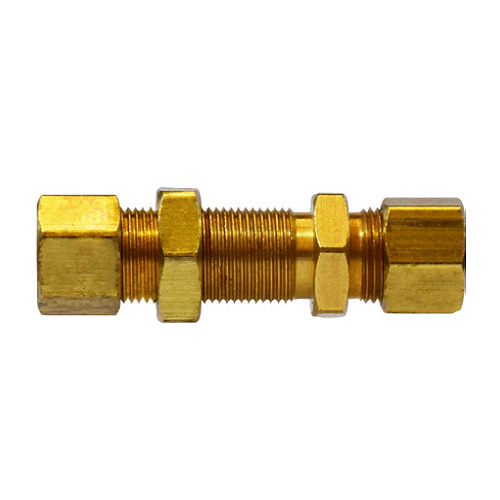

3/16 in. Tube OD - Bulkhead Unions - Brass Compression Fitting - SAE# 060101

(No reviews yet) Write a Review
SKU:
BF18087
MPN:
18087
Availability:
Available
Weight:
0.14 LBS
$9.88

Description


Applications:

  • Use with copper, aluminum and thermoplastic tubing. Plastic tubing requires insert.
  • Not recommended for steel tubing.
  • Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved.
  • Not recommended for application using gaseous media.
  • *Not lead free*
End Connection:
Compression End x Compression End - (Tube O.D.)
Bulkhead Unions - Straights
Operating Pressure:
View table here for working pressures at 73°F
Vibration:
Fair resistance - use long nut when greater vibration resistance is needed
Temperature Range:
Temperature Range -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures. (Refer to tubing temperature range)
Tolerance:
+/- .02 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.
Conformance:
Meets specifications and standards of ASA, ASME and SAE.
Special Notes:
"L" at the end of a Part# means Light Pattern
These fittings are completely interchangeable with full pattern fittings, but have been modified in some way.
This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
Additional:
prop 65 warning
View AllClose

Additional Information

Size (inches):
.1875 (3/16")
Material Type:
Brass
Product Type:
Bulkhead Union
Category Type:
Compression Fittings
Category Type:
Tube Fittings
Specifications or Standards:
SAE
Weight (lbs):
0.14
Additional:
From Import - China
