BFO Select

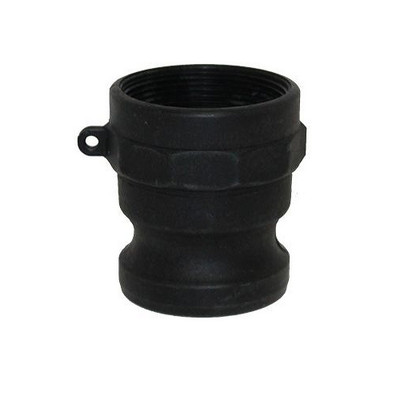

2 in. Male Adapter x Female NPT Thread - Type A Adapter - Black Polypropylene Camlock
(No reviews yet)
Write a Review
- SKU:
- BFOA200-PP
- Availability:
- Available
- Weight:
- 0.20 LBS
Description
Applications / Specifications:
Type A adapters are normally used with Type D couplers, but can be used with Type B and C couplers as well as DC (Dust Cap) of identical size.
Type A Male Adapter is a Male Cam and Groove x Female NPT Thread.
- Connection:
-  The adapter portion will couple with a Female Coupler.
-  The threaded portion will connect to a Male NPT Thread.
- Compatibility:
- Â Recommended to be used with other Polypropylene, Plastic, PVC and Banjo Camlocks.
- Â While they will connect - we generally do not recommend to use with other metal fittings.
- Â Metal male threads can damage plastic fittings, since they expand the fitting from the inside.
- Â Metal female threads are more suitable to use as they won't crack plastic fittings.
- Installation:
- Â Thread the Female NPT portion of the plastic pipe fitting onto a Male NPT Thread.
-  Then insert the Type A Adapter into a Female Coupler and close the two cam lever arms.
- Â For a quick disconnect, open the cam handles and remove the adapter.
- Material:
- Â Made out of Polypropylene (Poly).
Gaskets:
Polypropylene camlocks come standard with an EPDM gasket. Additional gasket materials can be found and purchased here.
End Connection:
Male Adapter x Female NPT Thread
Size Range:
1/2" to 4"
Additional:
Type A Working Pressures:
- 1/2" to 1" = 125 PSI
- 1-1/4" to 2" = 100 PSI
- 3" - 4" = 50 PSI
PDF / Specs / Brochure:Warranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Images:
- All images provided are a generic product image for reference and are not size specific.
- We do not recommend you make your purchases based on provided product images.
- All critical size information is listed in the product name and description.
Additional Information
Size (inches): |
2.00 (2") |
Category Type: |
Camlocks |
Material Type: |
Polypropylene |
Product Type: |
Type A Adapter |
Weight (lbs): |
0.2 |
Additional: |
From Import |
