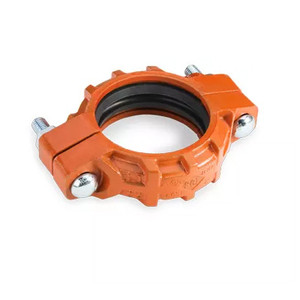

1 in. Standard Weight Flexible Coupling with EPDM "C" Gasket Orange Paint Housing UL/FM-65SF - COOPLOK Grooved Couplings

(No reviews yet) Write a Review
SKU:
BFO65SF3010
Availability:
Available
$33.46

Description

PDF downloads SCI Grooved Catalog PDF downloads SCI Grooved FM Approvals Summary PDF downloads SCI Grooved Fittings UL Approvals

Standard Weight Flexible Couplings - Grooved Pipe Fitting Technical Specifications:

  • Maximum working pressure depending on coupling size and schedule of pipe:
    • 1" to 6": 1000 psi (68.9 bar)
    • 8" to 12": 800 psi (55.1 bar)
    • 14" to 20": 300 psi (20.6 bar)
    • 24": 250 psi (17.2 bar)
  • UL Listed & FM Approved - 1" thru 12"
  • All housings, gaskets and bolts identified by SCI logo
  • Gaskets are pre-lubricated
  • E - EPDM Gasket (green stripe) -
    • 30° (-34°) to +230° (+110°)
  • T - Nitrile Gasket (orange stripe)
    • -20° (-29°) to +180° (+82°)
  • Ductile iron housings conform to ASTM A-536 Grade 65-45-12
  • Groove dimensions to AWWA C-606
  • Orange enamel paint or Hot dipped galvanized ASTM A-153
  • Smith-Cooper Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
View AllClose

Additional Information

Size (inches):
1.00 (1")
Material Type:
Ductile Iron
Product Type:
Flexible Coupling
Category:
Grooved Fittings
Style:
C Style
Gasket Style:
E EDPM
Finish:
Orange Paint
End Connection:
Grooved
Weight (lbs):
1.36
