SCI Smith Cooper International

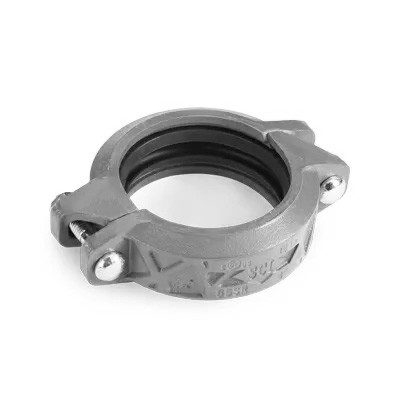

14 in. Pipe Size - Standard Weight Rigid Coupling with "C" Gasket - Gasket Grade: E - EPDM - Finish: Galvanized - 66SR Cooplok Grooved Pipe Connections -

(No reviews yet) Write a Review
SKU:
BF66SR3140
MPN:
66SR3140 | 4329003120
Availability:
Available
Weight:
33.50 LBS
$696.56

Description


Material Specifications:

FIG 65SR & 66SR Standard Weight Rigid Coupling with "C" Gasket

Figure 65SR & 66SR Standard Weight Rigid couplings are designed for use in piping systems when rigid piping connections are desired.
The angle-pad design allows the coupling housing to slide when tightened.
This provides offset clamping that creates a rigid joint resistant to flexural and torsional loads.

  • Maximum working pressure depending on coupling size and schedule of pipe:
    • 1" to 6" - 1000 psi (68.9 bar)
    • 8" - 800 psi (55.1 bar)
    • 10" & 12" - 600 psi (41.3 bar)
    • 14" to 20" - 300 psi (20.6 bar)
    • 24" - 250 psi (17.2 bar)
  • UL Listed & FM Approved - 1" thru 12"
  • All housings, gaskets and bolts identified by SCI logo
  • Gaskets are Pre-Lubricated Gasket Grade E - EPDM (green stripe) -30°F (-34°C) to +230°F (+110°C)
  • Gasket Grade T - Nitrile (orange stripe) -20°F (-29°C) to +180°F (+82°C) Gasket Grade O - Fluoroelastomer (blue stripe) +20°F (-6°C) to +300°F (+149°C)
  • Ductile iron housings conform to ASTM A-536 Grade 65-45-12
  • Groove dimensions to AWWA C-606
  • Finishes: Orange enamel paint - Hot dipped galvanized conforming to ASTM A-153
  • ASC Engineered Solutions Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
View AllClose

Warranty Information

ASC Engineered Solutions Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
View AllClose

Additional Information

Size (inches):
14.00 (14")
Material Type:
Ductile Iron
Product Type:
Rigid Coupling
Category Type:
Fire Protection Fittings
Category Type:
Grooved Fittings
Style:
C Style
Gasket Style:
E EDPM
Finish:
Galvanized
End Connection:
Grooved
Specifications Or Standards:
AWWA C-606
Weight (lbs):
33.5
Additional:
From Import
MPN:
66SR3140, 4329003120
