BFO Select

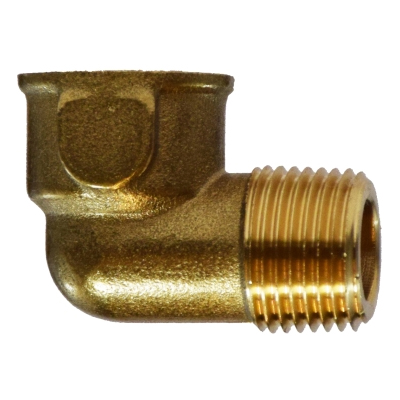

1/4 in. 90 Degree Street Elbow - MIP x FIP - NPTF Threads - Forged Brass - 1200 PSI - Pipe Fitting

(No reviews yet) Write a Review
SKU:
BFO28-166
Availability:
Available
Weight:
0.08 LBS
$3.24

Description

NPTF Threads: 1/4" | Wrench Flats: 0.72

View Sizing & Dimensions Assembly & Install Material Specifications

  • Typical Application: Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
  • Pressure: Operating pressure up to 1200 PSI.
  • Vibration: Fair resistance.
  • Temperature Range: -65° F to ° F (-53°C to °C).
  • Used With: Brass, bronze, copper, steel, aluminum and iron pipe.
  • Tolerance: .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
  • Conformance: Meets specifications and standards of ASA, ASME and SAE
  • Not lead free

Note: L at the end of a Part# means Light Pattern - these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Assembly Instructions:
1- Tighten approximately 2-1/2 turns past hand tight.
2- Fittings with Everseal tighten two turns past hand tight. Brittle materials require special caution.

Pipe Fittings - Brass 1/4" 90 Degree Street Elbows, NPTF Threaded, 1200 PSI

View AllClose

Additional Information

Size (inches):
.250 (1/4")
Material Type:
Brass
Pressure Rating (psi):
1200
Product Type:
90° Street Elbow
Category Type:
Pipe Fittings
End Connection:
MNPTF x FNPTF
Weight (lbs):
0.08
Additional:
From Import
