BFO Select

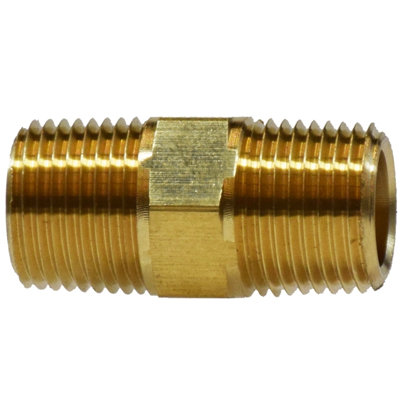

1 in. Hex Nipple - MIPxMIP - NPTF Threads - SAE 130137 - 1000 PSI Max - Brass Pipe Fitting

(No reviews yet) Write a Review
SKU:
BFO28-216
Availability:
Available
Weight:
0.43 LBS
$12.69

Description

NPTF Thread Size: 1" | Overall Length (A): 2.3 | Hex Size: 1.37

View Sizing & Dimensions Assembly & Install Material Specifications

  • Typical Application: Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
  • Pressure: Operating pressure up to 1200 PSI.
  • Vibration: Fair resistance.
  • Temperature Range: -65° F to 250° F(-53°C to 121°C).
  • Used With: Brass, bronze, copper, steel, aluminum and iron pipe.
  • Tolerance: .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
  • Conformance: Meets specifications and standards of ASA, ASME and SAE
  • Not lead free

Note: L at the end of a Part# means Light Pattern - these Fittings are completely interchangeable with full pattern Fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.

Assembly Instructions:
1- Tighten approximately 2-1/2 turns past hand tight.
2- Fittings with Everseal tighten two turns past hand tight. Brittle materials require special caution.

Pipe Fittings - Brass 1" Hex Nipples, NPTF Threaded, 1200 PSI

View AllClose

Additional Information

Size (inches):
.125 (1/8")
Material Type:
Brass
Pressure Rating (psi):
1000
Product Type:
Hex Nipple
Category Type:
Pipe Fittings
End Connection:
MNPTF x MNPTF
Overall Length (inches):
0.91"
Weight (lbs):
0.43
Additional:
From Import
