BFO Select
1 in. x 3/4 in. Face Bushing - MIP x FIP - NPTF Threads - 1200 PSI Max - Brass Pipe Fitting
- SKU:
- BFO28-119
- Availability:
- Available
- Weight:
- 0.10 LBS
Description
NPFT Thread Size (Male x Female): 1" x 3/4" | Overall Length: 0.77
| View Sizing & Dimensions | Assembly & Install | Material Specifications |
- Typical Application: Grease, fuels, LP and Natural gas (available on special order), refrigeration, instrumentation and hydraulic systems.
- Pressure: Operating pressure up to 1200 PSI.
- Vibration: Fair resistance.
- Temperature Range: -65° F to 250° F(-53°C to 121°C).
- Used With: Brass, bronze, copper, steel, aluminum and iron pipe.
- Tolerance: .02 on all dimensions. Dimension Data can change without notice. Please call us when dimensions are critical.
- Conformance: Meets specifications and standards of ASA, ASME and SAE
- Not lead free
Note: L at the end of a Part# means Light Pattern - these fittings are completely interchangeable with full pattern fittings, but have been modified in some way. This modification is usually in the length of the pipe threads. Used in plumbing and light industrial applications.
Assembly Instructions:
1- Tighten approximately 2-1/2 turns past hand tight.
2- Fittings with Everseal tighten two turns past hand tight. Brittle materials require special caution.
Pipe Fittings - Brass 1" x 3/4" Face Bushings, NPTF Threaded, 1200 PSI
Additional Information
Size (inches): |
1.00 (1") |
Material Type: |
Brass |
Pressure Rating (psi): |
1000 |
Product Type: |
Face Bushing |
Category Type: |
Pipe Fittings |
End Connection: |
MNPT x FNPT |
Weight (lbs): |
0.1 |
Additional: |
From Import |
1 Review
-
bushing
This part was hard to find, Mcmaster wasn't able to do it.But our engineer found it here, and its perfect! All the others were close but this one is exactly what we needed. It works perfectly, we dont have to waste time machining it to make it work for us.
Related Products
1/2 in. x 3/8 in. Face Bushing - MIP x FIP - NPTF Threads - 1200 PSI Max - Brass Pipe Fitting
BFO Select
3/8 in. x 1/8 in. Face Bushing - MIP x FIP - NPTF Threads - 1200 PSI Max - Brass Pipe Fitting
BFO Select
1/2 in. x 1/8 in. Face Bushing - MIP x FIP - NPTF Threads - 1200 PSI Max - Brass Pipe Fitting
BFO Select

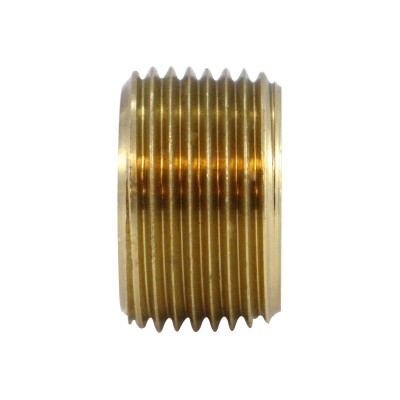

1/2 in. x 1/4 in. Face Bushing - MIP x FIP - NPTF Threads - 1200 PSI Max - Brass Pipe Fitting
