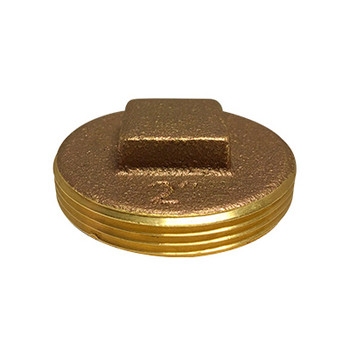

10 in. Raised Square Head Cleanout Plug, Southern Code, Cast Brass Pipe Fitting

(No reviews yet) Write a Review
SKU:
BFO970-333
UPC:
970-333
Availability:
Available
$120.35

Description

View Material Specifications View Product Sizing

Class 125 Pipe Fittings (150) - For steam, water, gas, oil and air service

Bronze threaded pipe fittings are manufactured from smooth-cored castings, designed to provide full flow with minimum restriction. All threads are accurately machined and gauged to ensure a perfect fit with the pipe. All pipe fittings are individually tested under water to ensure quality. Bronze provides a tighter seal and is easier to install than other metals. Can be used for water, plumbing, heating, pneumatic and marine applications, able to resist the harmful effects of corrosion when coming into contact with salt water or fresh water polluted with mineral acids or peaty soils.

  • Materials - ASTM B62-93 (85,5,5,5) C83600
  • Dimensions - ANSI B 16.15
  • Threads - ANSI B2.1 or BA 21 and Fed. WW-P-460C, MSS-SP-106, ANSI/ASME B1.20.1
  • UL/ FM Approved
  • 1S0 9001:2000
  • Not Lead Free
  • RoHS Compliant
View AllClose

Additional Information

Size (inches):
10.00 (10")
Material Type:
Cast Brass
Product Type:
Cleanout Plug
Category:
Pipe Fittings
Style:
Raised Square Head
Weight (lbs):
6.3
