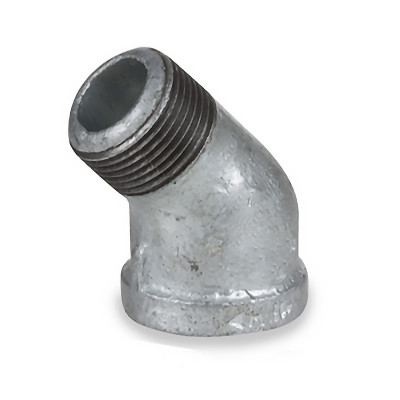

1/4 in. NPT Threaded - 45 Degree Street Elbow - 150# Galvanized Malleable Iron Pipe Fitting - A197, UL/FM
- SKU:
- G15034SF1002C
- Availability:
- Available
- Weight:
- 0.10 LBS
Description
Material Specifications:
45° Street Elbows - 150# Galvanized Malleable Iron Pipe Fittings
45-degree street elbow with Male x Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes and modify end connections.
- Malleable Castings conform to ASTM A197
- Hot-Dipped Galvanized Fittings conform to ASTM A153
- Malleable Fitting Dimensions conform to ASME B16.3
- Malleable Bushings, Plugs and Locknuts conform to ASME B16.14
- Malleable Unions conform to ASME B16.39
- NPT Threads on all fittings conform to ASME B1.20.1
- Class 150 fittings are UL listed and FM approved at 300psi.
- Class 300 fittings are UL listed.
- Manufacturing Facility is ISO Certified
- Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 (<0.25%Lead)
- Country of origin covered is Thailand & China
End Connection:
NPT Threaded - ASME B1.20.1
Female x Female
Female x Female
Lead Free?:
Yes. ANSI/NSF 61-4 Annex G and CA AB1953 set standards for low-lead content in plumbing materials, specifically requiring lead content to be less than 0.25% by weight. Compliance with these standards ensures the fittings meet the criteria for being considered lead-free under relevant regulations, such as those for potable water systems in the U.S.
Temperature Rating:
-20° to 350° deg F
Pressure:
Saturated steam 150 PSI @ 350°F;
Max pressure 300 PSI @ 150° F
Max pressure 300 PSI @ 150° F
Applications:
Use with air, water, oil, natural gas, steam, potable water, residential plumbing, commercial & institutional plumbing
Standards Met:
Class 150# pipe fittings are UL Listed and FM Approved @ 300 PSI
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 ( <0.25%Lead)
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 ( <0.25%Lead)
COC Available:
COC -Yes
MTR - No (if required - see our domestic line from Anvil)
MTR - No (if required - see our domestic line from Anvil)
Additional:
Country of Origin:
From Import - China or Thailand (subject to change)
From Import - China or Thailand (subject to change)

Additional Information
Size (inches): |
.250 (1/4") |
Material Type: |
Galvanized Malleable Iron |
Product Type: |
45° Street Elbow |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Specifications or Standards: |
UL/FM |
Specifications or Standards: |
ASME B1.20.1 |
Specifications or Standards: |
ASTM A197 |
Specifications or Standards: |
ASTM A153 |
Specifications or Standards: |
ANSF/ANSI 61-4 |
Specifications or Standards: |
AB1953 |
Weight (lbs): |
0.1 |
Additional: |
From Import |
Industry Crossover: |
34SF1002C, 0811026616 |
