1/8 in. NPT Threaded - 45 Degree Elbow - 150# Galvanized Malleable Iron Pipe Fitting - ASTM A197, UL/FM

(No reviews yet) Write a Review
SKU:
G15034F1001C
Availability:
Available
Weight:
0.07 LBS
  • 1/8 in. NPT Threaded - 45 Degree Elbow - 150# Galvanized Malleable Iron Pipe Fitting - UL/FM
  • View 2: 1/8 in. NPT Threaded - 45 Degree Elbow - 150# Galvanized Malleable Iron Pipe Fitting - ASTM A197, UL/FM
$4.07

Description


Material Specifications:

45° Elbows - 150# Galvanized Malleable Iron Pipe Fittings

45-degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes.

  • Malleable Castings conform to ASTM A197
  • Hot-Dipped Galvanized Fittings conform to ASTM A153
  • Malleable Fitting Dimensions conform to ASME B16.3
  • Malleable Bushings, Plugs and Locknuts conform to ASME B16.14
  • Malleable Unions conform to ASME B16.39
  • NPT Threads on all fittings conform to ASME B1.20.1
  • Class 150 fittings are UL listed and FM approved at 300psi.
  • Class 300 fittings are UL listed.
  • Manufacturing Facility is ISO Certified
  • Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 (<0.25%Lead)
  • Country of origin covered is Thailand & China
End Connection:
NPT Threaded - ASME B1.20.1
Female x Female
Lead Free?
Yes. ANSI/NSF 61-4 Annex G and CA AB1953 set standards for low-lead content in plumbing materials, specifically requiring lead content to be less than 0.25% by weight. Compliance with these standards ensures the fittings meet the criteria for being considered lead-free under relevant regulations, such as those for potable water systems in the U.S.
Temperature Rating:
-20° to 350° deg F
Pressure:
Saturated steam 150 PSI @ 350°F;
Max pressure 300 PSI @ 150° F
Applications:
Use with air, water, oil, natural gas, steam, potable water, residential plumbing, commercial & institutional plumbing
Standards Met:
Class 150# pipe fittings are UL Listed and FM Approved @ 300 PSI
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 ( <0.25%Lead)
COC Available:
COC -Yes
MTR - No (if required - see our domestic line from Anvil)
Additional:
Country of Origin:
From Import - China or Thailand (subject to change)
PDF downloadsPDF/ Specs / Brochure

Dimensions / Datasheet

View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty

  • You are entitled to quality products. If you find that the quality of your product is unacceptable, contact us.
  • Our products are warranted to be free of defects in material or workmanship upon delivery.
  • Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
  • No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
  • This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
  • Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

    Dimensions / Images:

  • Dimensions provided are for reference only and subject to change.
  • If you require exact dimensions, contact us.

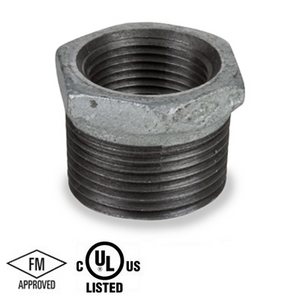

  • All images provided are a generic product image and are not size specific -to give customers a image reference when ordering.
  • We do not recommend you make your purchases based on provided product images. All critical size information is listed in the product name.
Easy Returns

Domestic and International Shipping Policy
View AllClose

Additional Information

Size (inches):
.125 (1/8")
Material Type:
Galvanized Malleable Iron
Product Type:
45° Elbow
Category Type:
Pipe Fittings
Pressure Rating (psi):
150
End Connection:
NPT
Specifications or Standards:
UL/FM
Specifications or Standards:
ASME B1.20.1
Specifications or Standards:
ASTM A197
Specifications or Standards:
ASTM A153
Specifications or Standards:
ANSF/ANSI 61-4
Specifications or Standards:
AB1953
Weight (lbs):
0.07
Additional:
From Import
Industry Crossover:
34F 1001C, 0811022805
