BFO Select

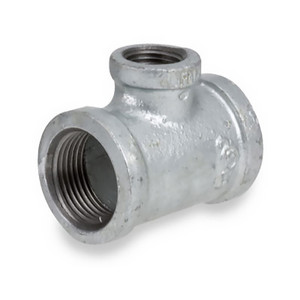

1-1/2 in. x 1 in. x 3/4 in. NPT Threaded - Reducing Tee (RxRxB) - 150# Malleable Iron Galvanized Pipe Fitting - UL/FM
- SKU:
- G34RT1014010006C
- Availability:
- Available
- Weight:
- 1.01 LBS
Description
Run Diameter 1= 1-1/2 in.
Run Diameter 2= 1 in.
Branch Outlet Diameter= 3/4 in.
150# Reducing Tees Dimensions & Drawings
- Class 150 pipe fittings are UL Listed and FM Approved at 300 psi
- Class 300 pipe fittings are UL Listed
- Hot-dipped galvanized pipe fittings are certified to; NSF/ANSI 61-4 & California AB1953 Lead Free
- Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 & ASME B16.39
- Hot-dipped galvanized pipe fittings conform to ASTM A153
- NPT threads on all pipe fittings conform to ASME B1.20.1
- Independent lab verification: fittings meet applicable chemical & physical properties.
- Manufacturing facilities are ISO 9001:2008 & ISO 14001.
- Fittings are 100% air tested.
- Canadian Registration Numbers (CRN) available
- Differences & Best Use: Black Pipe & Galvanized Pipe Fittings
- NPT, NPTF & NPS Connections
Additional Information
Size (inches): |
1.50 (1-1/2") |
Material Type: |
Galvanized Malleable Iron |
Product Type: |
Reducing Tee |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Specifications or Standards: |
UL/FM |
Weight (lbs): |
1.01 |
Additional: |
From Import |
Industry Crossover: |
34RT1014010006C |
