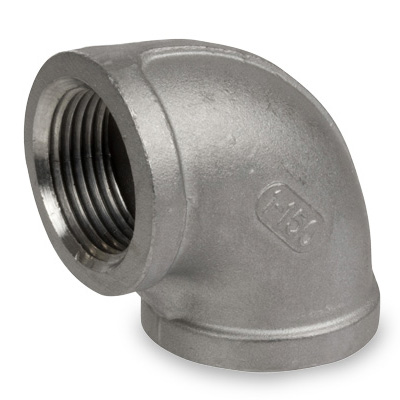

1-1/2 in. NPT Threaded - 90 Degree Elbow - 150# Cast 316 Stainless Steel Pipe Fitting
- SKU:
- 18-T
- MPN:
- 63107
- Availability:
- Available
- Weight:
- 1.07 LBS
Description
90° Elbows - 150# Threaded Pipe Fittings - Cast
90 degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Our high quality standard pattern 150 lb rated stainless steel threaded pipe fittings are manufactured to the highest standards. All stainless steel pipe fittings are monitored by quality control personnel for strict compliance with applicable standards & specifications. These stainless steel pipe fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fitting will prevent contamination making it useful to many professionals.
- Use with air, water, oil, natural gas, steam
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72 F;150 psi @ 366 F for steam
- Maximum Steam Pressure: 150 psi
- Stainless castings conform to ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
- Manufacturing facility is ISO 9001:2008
- Dimensions:
- Dimensions are for reference only and subject to change.
- Contact us if you require fittings with specific dimensions.
| Size (inches) | A | Weight (lbs) | 304 Stainless Steel Part Number | 316 Stainless Steel Part Number |
| 1/8" | 0.71 | 0.05 | 1-A | 18-M |
| 1/4" | 0.77 | 0.08 | 1-B | 18-N |
| 3/8" | 0.94 | 0.12 | 1-C | 18-O |
| 1/2" | 1.16 | 0.19 | 1-D | 18-P |
| 3/4" | 1.26 | 0.30 | 1-E | 18-Q |
| 1" | 1.44 | 0.52 | 1-F | 18-R |
| 1-1/4" | 1.73 | 0.71 | 1-G | 18-S |
| 1-1/2" | 1.91 | 1.07 | 1-H | 18-T |
| 2" | 2.24 | 1.45 | 1-I | 18-U |
| 2-1/2" | 2.70 | 3.26 | 1-J | 18-V |
| 3" | 3.09 | 4.66 | 1-K | 18-W |
| 4" | 3.82 | 7.05 | 1-L | 18-X |
Warranty Information
Quality Guarantee & Product Warranty
You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
Our products are warranted to be free of defects in material or workmanship upon delivery.
Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Dimensions:
Dimensions provided are for reference only and subject to change.
If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.
Need to Make a Return? Click Here
Shipping Policy
View Shipping Policy Here
Additional Information
Size (inches): |
1.50 (1-1/2") |
Material Type: |
316 Stainless Steel |
Product Type: |
90° Elbow |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
1.07 |
Additional: |
From Import |
Industry Crossover: |
63107 |
