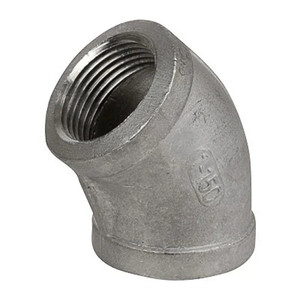

1/2 in. 45 Degree Elbow - 150# NPT Threaded 316 Stainless Steel Pipe Fitting

(No reviews yet) Write a Review
SKU:
22-P
MPN:
63183
Availability:
Available
Weight:
0.22 LBS
$6.16
Frequently bought together:

Description

150# Stainless Steel Pipe Fitting 45 Degree Elbow NPT Threaded

45° Elbows - Heavy Pattern 150# Threaded Pipe Fittings - Cast

45-degree elbow with Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes. Our high quality standard pattern 150 lb rated stainless steel threaded pipe fittings are manufactured to the highest standards. All stainless steel pipe fittings are monitored by quality control personnel for strict compliance with applicable standards & specifications. These stainless steel pipe fittings are excellent for uses that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fitting will prevent contamination making it useful to many professionals.

  • Use with air, water, oil, natural gas, steam
  • NPT and FNPT threads conform to ASME B1.20.1
  • Maximum Pressure: 300 psi @ 72 F;150 psi @ 366 F for steam
  • Maximum Steam Pressure: 150 psi
  • Stainless castings conform to ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
  • Heavy Pattern 150# Threaded Fittings - Cast
  • Manufacturing facility is ISO 9001:2008
  • Quality guarantee on all pipe fittings
Size (inches) A Weight (lbs) 304 Stainless Steel
Part Number
316 Stainless Steel
Part Number
1/8" 0.73 0.07 5-A 22-M
1/4" 0.75 0.07 5-B 22-N
3/8" 0.75 0.11 5-C 22-O
1/2" 0.87 0.22 5-D 22-P
3/4" 0.91 0.34 5-E 22-Q
1" 1.10 0.53 5-F 22-R
1-1/4" 1.26 0.66 5-G 22-S
1-1/2" 1.38 0.93 5-H 22-T
2" 1.65 1.34 5-I 22-U
2-1/2" 1.85 2.87 5-J 22-V
3" 2.05 3.93 5-K 22-W
4" 2.60 5.91 5-L 22-X
*Dimensions are for reference only. If you require closer tolerances we recommend a custom machined solution.
View AllClose

Additional Information

Size (inches):
.500 (1/2")
Material Type:
316 Stainless Steel
Product Type:
45° Elbow
Category:
Pipe Fittings
Pressure Rating (psi):
150
End Connection:
NPT
Weight (lbs):
0.22
