BFO Select

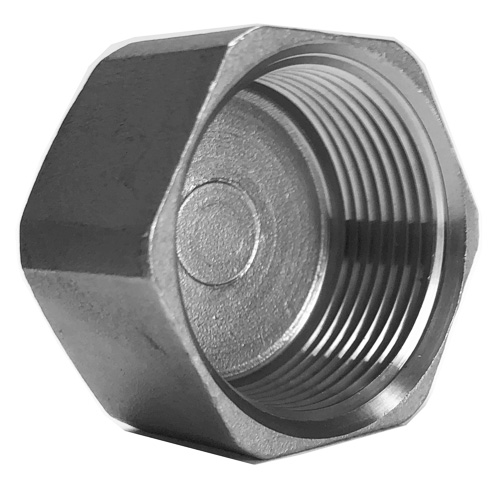

1/2 in. NPT Threaded - Hex Head Cap - 150# 304 Stainless Steel Barstock Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- 11-D
- Availability:
- Available
- Weight:
- 0.10 LBS
Description
Material Specifications:
Hex Head Caps - 150# Cast NPT Threaded Pipe Fittings
Class 150 hex head caps are stainless steel 304 or 316 barstock pipe fittings with female National Pipe Taper (NPT) threads for stopping flow.
These hex head caps have NPT threads for creating tighter seals than straight threads.
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72° F
- Maximum Steam Pressure: 150 psi @ 366° F
- 304 stainless castings conform to ASTM A351 ACI Grade CF8
- 316 stainless steel castings conform to ACI Grade CF8M
- Manufacturing facility is ISO 9001
- For Use with Schedule 40 Pipe Nipples and 150# Flanges
End Connection:
Female NPT Threaded - ASME B1.20.1
Applications:
Use with air, water, oil, natural gas, steam
MTRS / COC Available:
COC can be supplied with order.
Additional:
Schedule B 7307.29.0090
ECCN 2B999
Country of Origin:
From Import (China)
PDF/ Specs / BrochureWarranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Additional Information
Size (inches): |
.500 (1/2") |
Material Type: |
304 Stainless Steel |
Product Type: |
Hex Head Cap |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
0.1 |
Additional: |
From Import |
Industry Crossover: |
62078 |
