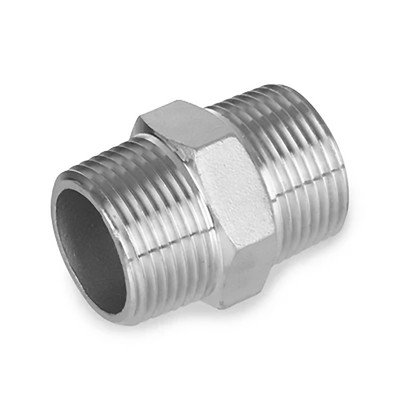

1/8 in. Hex Nipple - NPT Threaded - 150# 304 Stainless Steel Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- 10-A
- Availability:
- Available
- Weight:
- 0.02 LBS
Frequently bought together:
Description
Class 150 stainless steel 304 & 316 cast pipe fittings. Features male National Pipe Taper (NPT) threads for closing the end of a female threaded pipe. Hex nipples connect with female pipes or fittings and connects with NPT threads, which create a tighter seal than straight threads. The hexagon allows for increased leverage and use with a wrench during installation and disassembly.
Hex Nipples - 150# Stainless Steel
- 304 stainless steel castings conform to ASTM A351 ACI Grade CF8
- 316 stainless steel casting conform to ACI Grade CF8M (316)
- NPT threads on pipe fittings conform to ASME B1.20.1
- Manufacturing facility is ISO 9001:2008
- Certified pipe fittings meet applicable chemical & mechanical properties
- Quality guarantee on all pipe fittings
- * Sizes 1" up to 4" may have 8 hexes instead of 6
Hex Nipple Reference Dimensions
| Diameter (inches) | A | 304 Stainless Steel Part Number | 316 Stainless Steel Part Number |
| 1/8" | 1.30 | 10-A | 27-M |
| 1/4" | 1.30 | 10-B | 27-N |
| 3/8" | 1.38 | 10-C | 27-O |
| 1/2" | 1.67 | 10-D | 27-P |
| 3/4" | 1.81 | 10-E | 27-Q |
| 1" | 1.97 | 10-F | 27-R |
| 1-1/4" | 2.28 | 10-G | 27-S |
| 1-1/2" | 2.36 | 10-H | 27-T |
| 2" | 2.70 | 10-I | 27-U |
* Dimensions are for reference only. If you require closer tolerances we recommend a custom machined solution.
Additional Information
Size (inches): |
.125 (1/8") |
Material Type: |
304 Stainless Steel |
Product Type: |
Hex Nipple |
Category: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
0.02 |
