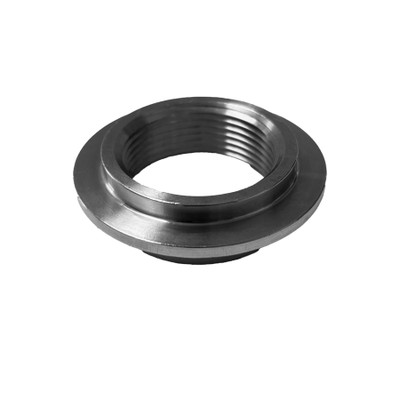

1/4 in. Weld Spud - NPT Threaded 150# Cast 316 Stainless Steel Pipe Fitting
(No reviews yet)
Write a Review
- SKU:
- BFOS3616WS002
- MPN:
- S3616WS002
- Availability:
- Available
- Weight:
- 0.06 LBS
Frequently bought together:
Description
Weld Spuds - Heavy Pattern 150# Cast Threaded Pipe Fittings
Class 150 cast 316 stainless steel pipe fitting weld spud with a weld x female NPT end connection.
- Use with air, water, oil, natural gas, steam
- NPT and FNPT threads conform to ASME B1.20.1
- Maximum Pressure: 300 psi @ 72 F;150 psi @ 366 F for steam
- Maximum Steam Pressure: 150 psi
- Stainless castings conform to ASTM A351 ACI Grade CF8 (304) & ACI Grade CF8M (316)
- Heavy Pattern 150# Threaded Fittings - Cast
- Manufacturing facility is ISO 9001:2008
- Quality guarantee on all pipe fittings
| Size (inches) | A | B | Weight (lbs) | 316 Stainless Steel Part Number |
| 1/4" | 0.50 | 1.50 | 0.05 | BFOS3616WS002 |
| 3/8" | 0.50 | 1.62 | 0.06 | BFOS3616WS003 |
| 1/2" | 0.59 | 1.75 | 0.1 | BFOS3616WS004 |
| 3/4" | 0.65 | 1.93 | 0.2 | BFOS3616WS006 |
| 1" | 0.78 | 2.18 | 0.2 | BFOS3616WS010 |
| 1-1/4" | 0.75 | 2.68 | 0.3 | BFOS3616WS012 |
| 1-1/2" | 0.87 | 3.00 | 0.4 | BFOS3616WS014 |
| 2" | 0.93 | 3.50 | 0.6 | BFOS3616WS020 |
| 2-1/2" | 1.00 | 4.06 | 1.1 | BFOS3616WS024 |
| 3" | 1.00 | 4.62 | 1.3 | BFOS3616WS030 |
| 4" | 1.12 | 5.81 | 2.6 | BFOS3616WS040 |
*Dimensions are for reference only. If you require exact dimensions please contact us.
Additional Information
Size (inches): |
.250 (1/4") |
Material Type: |
316 Stainless Steel |
Product Type: |
Tank Spud |
Product Type: |
Weld Spud |
Category: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Weight (lbs): |
0.06 |
