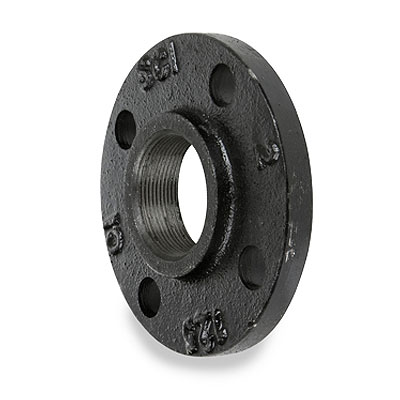

12 in. 125# Cast Iron Black Threaded Companion Pipe Flange
(No reviews yet)
Write a Review
- SKU:
- BFO17TH1120
- Availability:
- Call for Availability
- Weight:
- 55.00 LBS
Frequently bought together:
Description
Dimensions: A= 19 B= 17 C= 1.25 D= 2.19 Bolt Size= 1 Number of
Bolt Holes= 12
Class 125 & 250 Cast Flanges Specifications:
- Grey iron castings conform to ASTM A126 and ASTM A48
- Companion pipe flange dimensions conform to ASME B16.1
- Hot-dipped galvanized pipe flanges conform to ASTM A153
- Companion pipe flanges threads conform to ASME B1.20.1
- Manufacturing facility is ISO 9001:2008
Additional Information
Size (inches): |
12.00 (12") |
Material Type: |
Cast Iron |
Product Type: |
Companion |
Category: |
Pipe Flanges |
Pressure Rating (psi): |
125 |
End Connection: |
Threaded |
Number of Bolt Holes: |
12 |
Bolt Hole Size (inches): |
1" |
Weight (lbs): |
55 |
Additional: |
From Import |
