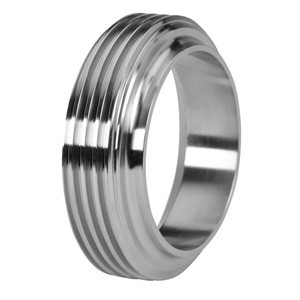

3 in. Short Threaded Bevel Seat Ferrule - 15TRF - 316L Stainless Steel Sanitary Fitting
- SKU:
- BF615TRF-3
- MPN:
- 115-W
- Availability:
- Available
- Weight:
- 0.78 LBS
Description
Bevel Seat Ferrule Drawings / Dimensions
This ferrule is used to adapted butt weld sanitary connections to bevel seat connections with a short bevel seat threaded end x weld end.
- Available in 304 and 316L Stainless Steel
- Surface Finish: 32Ra
- Polished 150 grit outside (OD) 180 grit inside (ID)
Part Number Cross Reference:
Wayland | Alfa Laval | Dixon | VNE | Topline | Sanitary Solutions |
W15TRF | 15TRF | 15TRF | 15TR | 15TRF | SS15TRF |
Tube O.D. | A | B | 304 Stainless Steel Part Number | 316L Stainless Steel Part Number |
1" | 0.718 | 0.870 | BF415TRF-1 | BF615TRF-1 |
1-1/2" | 0.718 | 1.370 | BF415TRF-15 | BF615TRF-15 |
2" | 0.750 | 1.870 | BF415TRF-2 | BF615TRF-2 |
2-1/2" | 0.875 | 2.370 | BF415TRF-25 | BF615TRF-25 |
3" | 0.906 | 2.870 | BF415TRF-3 | BF615TRF-3 |
4" | 1.031 | 3.834 | BF415TRF-4 | BF615TRF-4 |
Additional Information
Size (inches): |
3.00 (3") |
Material Type: |
316L Stainless Steel |
Product Type: |
Ferrule |
Category Type: |
Sanitary Fittings |
Category Type: |
Bevel Seat Fittings |
Style: |
15TRF |
Specifications or Standards: |
3-A |
Weight (lbs): |
0.78 |
Additional: |
From Import |
