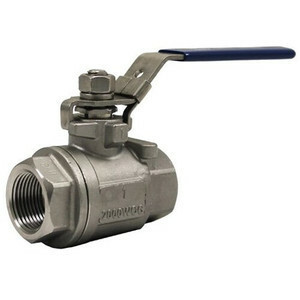

1/4 in. 2-Piece Stainless Steel Full Port Ball Valve 2000 PSI NPT Threaded 316 SS with Locking Handles

(No reviews yet) Write a Review
SKU:
BFO92-N
Availability:
Available
Weight:
0.64 LBS
$31.89
Frequently bought together:

Description

2000 PSI Stainless Steel 2 Piece Full Port Ball Valves Features:

  • Mediums: Water, Oil & Gas. (WOG)
  • Seats & Seals: Teflon (PTFE)
  • Threads: Female NPT (National Pipe Thread)
  • Full Port: Full Port Ball Valve
  • Handle: Blow-Out Proof
  • Handle Locking Mechanism: handle equipped with locking device (Re-movable)
  • Material: Manufactured from robust Stainless Steel 316
Applications / Description
2000 PSI Ball Valves are robust High Pressure. Valves used to control a flow shut-off in high pressure applications. Since the valve body is comprised of two parts, they can be serviced.
Valve Advantages
  • Robust design for high pressure
  • Perfect for robust environments where high pressures fittings are required.
  • Blow out Proof Handles Stem
  • They connect easily to a standard threaded pipe
Maximum Operating Pressure
  • 2000 WOG (1/4" - 1")
  • 1500 WOG (1-1/4" - 2")
  • 150 lb. Steam Ratings (Saturated) with RTFE Seats
Operating Temperature Range :
-13°F to 302°F (-25°C to 150°C)
Shell Test
20MPa
Seat Test
0.6~0.8Mpa
Seats and Seals:
Seal Seat is composed of Teflon (PTFE) which makes this Robust Valve corrosion resistant plus heat & chemical resistant.
Valve Body
Stainless Steel 316 (CF8M)
Compatibility
  • Suitable to be used with any substance compatible with Stainless Steel and Teflon (PTFE).
  • All wetted parts of the valve that touch the product being transferred are PTFE (Teflon) and 316 Stainless steel (CF8M).
Design Data:
  • Design Standard: ASME B16.34
  • Nominal Diameter: DN8-DN50(1/4"~2")
  • End Connections: DIN259/2999?ISO228/1&ISO7/1
  • Threads: ASME B1.20.1?BS21
  • Inspection & Testing: According to API 598, EN12266-1
Dimensions / Specifications
View AllClose

Additional Information

Size (inches):
.250 (1/4")
Material Type:
316 Stainless Steel
Pressure Rating (psi):
2000
Product Type:
Ball Valve
Category:
Industrial Valves
Style:
2 Piece
End Connection:
NPT
Port Type:
Full Port
Handle Type:
Locking Handle
Weight (lbs):
0.64
