Stainless Steel Beverage Fitting Female Flare to Barb Elbow - Welded - A=1/8" (4.01mm) Barb, B=1/4" (7/16-20) Female Flare, C=1.20" (30.6mm) Length, D=1.25" (31.8mm) Height

(No reviews yet) Write a Review


Stainless Steel Beverage Fittings

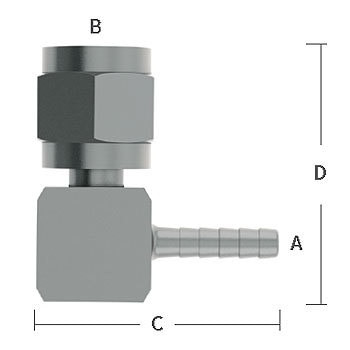

Dimensions: A=1/8" (4.01mm) Barb, B=1/4" (7/16-20) Female Flare, C=1.20" (30.6mm) Length, D=1.25" (31.8mm) Height

Technical/Material Specifications:

  • Stainless Steel Beverage Fittings for the Beer & Beverage Industry
  • BFO stainless steel fittings are made from a combination of 303 & 304 materials.
  • Type 303 is certified to either ASTM A581/A582 or AMS 5640.
  • Type 304 is certified to AMS 5639 or ASTM A479.
  • In cases where tubing is used, it is 304 stainless steel certified to ASTM A269.
  • All fittings are made of stainless steel except the swivel nuts which are nickel plated brass.
  • All male threads are rolled rather than cut. No exceptions.
  • All of the stainless steel that enters our plant is certified by the steel mill from which we purchase.
  • We will be happy to furnish copies of these certifications to any customer.
  • All stainless steel fittings are passivated to meet the standards of major food and beverage companies.
View AllClose

Additional Information

Size (inches):
.125 (1/8")
Product Type:
Elbow Adapter
Beverage Fittings
End Connection:
Female Flare x Barb Elbow
