BFO Select

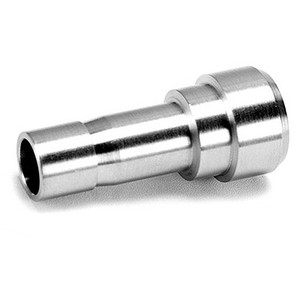

1/4 in. x 1/8 in. Tube O.D. Reducing Port Connector - 316 Stainless Steel Compression Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 30-RPC-1/4-1/8
- MPN:
- DCRP4-2-S
- Availability:
- Available
- Weight:
- 0.07 LBS
Description
Applications:
Commonly used on: Instrumentation, high pressure and temperature, cryogenic service, and process and control systems where high quality tube fittings are required. Provide a highly reliable, leak proof and torque free seal on all tubing connections.
These double ferrule tube fittings have been designed specifically for the many demanding applications such as chemical, petroleum, power generating, pulp, paper and various types of manufacturing industries.
Connection:
Reducing tube port connectors for connecting fractional DKLOK ports.
Maximum Operating Pressure:
11,000 psi (757 bar) @ 100°F (38°C)
Operating Temperature Range:
325°F (-198°C) to 1200°F (648°C)
Size:
OD 1/16 - 2 inch, OD 2mm - 38mm
Ferrule:
Double Ferrule
Pipe End Pressure Ratings:
Many tube fittings have a male or female pipe end. These ends sometimes have a lower pressure rating than the pressure rating of the tube fitting end. The ratings shown above are based on ASME B31.3-1999.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
Female pipe ends have lower ratings than male pipe end in a given size due to the inner and outer diameters of the female threads being larger than those of the male pipe ends.
PDF / Specs / Brochure* These tube fittings intermix and interchange with all major brands of compression tube fittings.
* Dimensions are for reference only and subject to change.
Additional Information
Size (inches): |
.250 (1/4") |
Size (inches): |
.125 (1/8") |
Material Type: |
316 Stainless Steel |
Product Type: |
Reducing Port Connector |
Category Type: |
Compression Fittings |
Category Type: |
Tube Fittings |
Weight (lbs): |
0.07 |
Additional: |
From Import |
