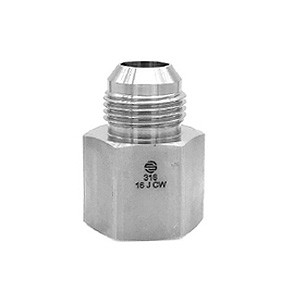

1/4 in. MJIC Flare x 1/4 in. FNPT Threaded Straight Adapter - 316 Stainless Steel Hydraulic JIC Flare 37 Degree Tube Fitting

Designed to perform in corrosive and high-pressure environments, the SS2405-04-04 1/4 male JIC X 1/4 female pipe is machined from premium 316 stainless steel for superior corrosion resistance. Its precision-cut threads promote secure engagement and leak-tight sealing in high-pressure hydraulic systems. Commonly specified for chemical processing systems, this adapter enhances system integrity by reducing potential leak points. By combining material strength with dimensional accuracy, this adapter supports long-term performance in challenging service conditions. High-grade 316 stainless steel body for harsh environments Connection type: -04 MJIC X 1/4 FEMALE NPT Supports high-pressure and high-temperature systems Machined for consistent hydraulic thread engagement Designed for industrial and offshore applications Order now for fast shipping and professional-grade results.

• Straights JIC FLARE 37° 3161 Stainless Steel Adapters
• Hydraulic Hose Adapters

Connection Size 1 : 1/4 in
Connection Size 2 : 1/4 in
Connection Type 1 : Male JIC
Connection Type 2 : Female NPT
Dimension Standards : ANSI/ASME B1.20.1
Dimensions : 1.389 in L
Fitting Type : Adapter
Material : 316 Stainless Steel
Maximum Operating Pressure : 5000 psi
Operating Temperature : 1000°F
Series : SS2405
Thread Size 1 : 7/16 - 20
Thread Size 2 : 1/4 - 18

MJIC Flare 37° x Female NPT Threaded Adapter

Technical Information & Pressure Ratings

Catalog Selection
