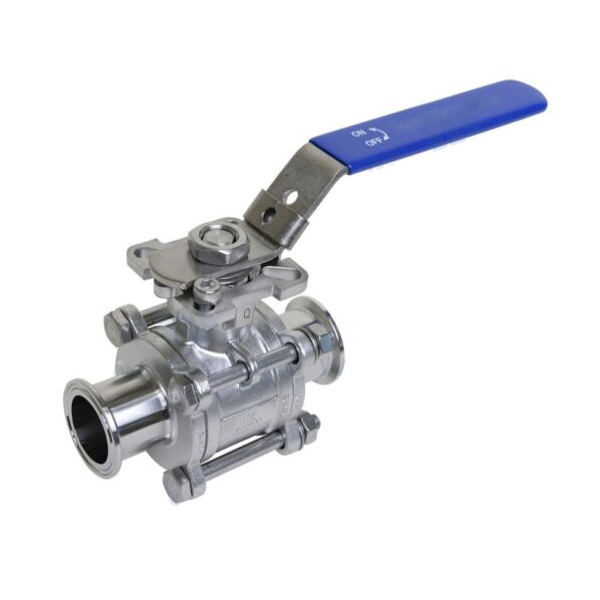

3 in. Stainless Steel Sanitary Encapsulated 2-Way Ball Valves, 800 PSI Full Port CF8M 316 Stainless Steel
(No reviews yet)
Write a Review
- SKU:
- BFOC6BVTC-3
- MPN:
- BFOC6BVTC-3
- Availability:
- Available
- Weight:
- 16.20 LBS
Frequently bought together:
Description
Dimensions: A =14.567 B=4.20 C=9.00 D=.669 E=F10 F=F12
- Material: CF8M (316) Stainless Steel
- ID Polish is RA 31 minimum
- Blow-out proof stem
- Full port design offers low pressure drop and less turbulent flow
- Compact design for areas with tight space restrictions
- Precision stainless steel balls reduce torque and friction losses while extending seat life
- ISO high mounting pad for direct mount automation
- Pressure Rating:
- 1/2" - 2": 1000 PSI WOG
- 2-1/2" - 4": 800 PSI WOG
Additional Information
Size (inches): |
3.00 (3") |
Material Type: |
316 Stainless Steel |
Product Type: |
Ball Valve |
Category: |
Sanitary Valves |
Features: |
Encapsulated |
Style: |
2 Way |
Port Type: |
Tube Port |
WOG Rating: |
800 |
Weight (lbs): |
16.2 |
