BFO Select
6 in. Type A Stub End (14VB) 304 Stainless Steel Sanitary Tube OD Fitting - Machine Finish
(No reviews yet)
Write a Review
- SKU:
- BF414VB-6
- MPN:
- 227-L6
- Availability:
- Request a Quote for This Item
- Weight:
- 1.20 LBS
Description

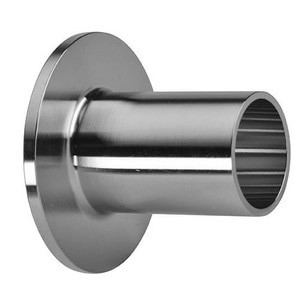

Unpolished Type A Stub End (14VB-UNPOL)
14VB lap joint stub end is made is available in 304 or 316L stainless steel. 316L has a lower carbon content than 304 stainless steel, making it easier to weld and offers better corrosion resistance. This precision crafted sanitary lap joint stub end comes standard with a machine finish. This 14VB stub end is used in conjunction with a 38SL slip on flange to adapt an industrial pipe flange to a sanitary butt weld ends in applications for the food, beverage, cosmetic, pharmaceutical, bio-processing and semiconductor industries.
- Available in 304 and 326L Stainless Steel
- Compatible with 38SL Tube Flanges
- Machine Finished to 32RA ID
Part Number Cross Reference:
| Wayland | Alfa Laval | Dixon | VNE | Topline | Sanitary Solutions |
| W14VB | 14VB | 14VB | 14WA | 14VB | SS14VBA |
| Tube O.D. | A | B | C | 304 Stainless Steel Part Number | 316L Stainless Steel Part Number |
| 1/2" | 2.000 | 1.500 | 0.130 | BF614VB-50 | |
| 3/4" | 2.000 | 1.500 | 0.130 | BF614VB-75 | |
| 1" | 1.625 | 2.000 | 0.130 | BF414VB-1 | BF614VB-1 |
| 1-1/2" | 1.750 | 2.875 | 0.130 | BF414VB-15 | BF614VB-15 |
| 2" | 1.500 | 3.625 | 0.130 | BF414VB-2 | BF614VB-2 |
| 2-1/2" | 2.000 | 4.125 | 0.130 | BF414VB-25 | BF614VB-25 |
| 3" | 2.250 | 5.000 | 0.166 | BF414VB-3 | BF614VB-3 |
| 4" | 2.625 | 6.187 | 0.166 | BF414VB-4 | BF614VB-4 |
| 6" | 3.000 | 8.500 | 0.218 | BF414VB-6 | BF614VB-6 |
| 8" | 3.000 | 10.625 | 0.232 | BF614VB-8 | |
| 10" | 3.500 | 12.750 | 0.283 | BF614VB-10 | |
| 12" | 3.000 | 15.000 | 0.283 | BF614VB-12 |
Additional Information
Size (inches): |
6.00 (6") |
Material Type: |
304 Stainless Steel |
Finish: |
Machined |
Product Type: |
Stub End |
Category Type: |
Tube OD Fittings |
Style: |
14VB |
Weight (lbs): |
1.2 |
Additional: |
From Import |
