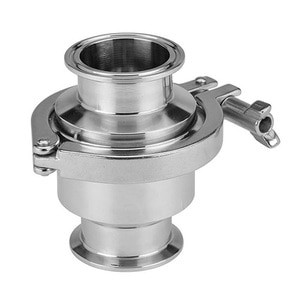

2 in. Spring Loaded Check Valve - Silicone Seat (45MP) 316L Stainless Steel Sanitary Valve (3-A)

(No reviews yet) Write a Review
SKU:
BF645MP-S-2
Availability:
Available
Weight:
3.50 LBS
$263.25

Description

Spring Check Valves Stainless Steel Sanitary Valves (45MP)

Stainless Steel Sanitary Spring Check Valves (45MP)

  • 3-A Sanitary Certified
  • Material: Forged 316L stainless steel
  • Lower resistance to flow
  • Suitable for low and medium viscosity fluids
  • Full size flow plate
  • Long stem bushing for better life cycle
  • All wetted surfaces are sanitary finished to ≤32Ra
  • Operating temperature range:
    • Silicone: -58°F to 428°F
    • FKM: 0°F to 392°F
    • EPDM: -40°F to 302°F
  • Maximum operating pressure: 145 PSI
  • Seat and O-ring: Silicone (standard), FKM, or EPDM

3-A Sanitary Certified Fittings

Product Data Table:

Tube O.D. A B C L Cracking
Pressure (PSI)
Silicone FKM EPDM
1/2" 1.988 0.984 0.374 3.500 2.6 BF645MP-S-50 BF645MP-V-50 BF645MP-E-50
3/4" 2.520 0.984 0.622 3.500 2.6 BF645MP-S-75 BF645MP-V-75 BF645MP-E-75
1" 2.520 1.988 0.870 4.126 3.6 BF645MP-S-1 BF645MP-V-1 BF645MP-E-1
1-1/2" 3.051 1.988 1.370 4.563 3.6 BF645MP-S-15 BF645MP-V-15 BF645MP-E-15
2" 3.583 2.520 1.870 5.063 3.6 BF645MP-S-2 BF645MP-V-2 BF645MP-E-2
2-1/2" 4.173 3.051 2.374 5.374 3.6 BF645MP-S-25 BF645MP-V-25 BF645MP-E-25
3" 4.685 3.583 2.874 6.126 4.3 BF645MP-S-3 BF645MP-V-3 BF645MP-E-3
4" 5.689 4.685 3.843 8.126 4.3 BF645MP-S-4 BF645MP-V-4 BF645MP-E-4
6" 8.543 6.567 5.780 10.157 4.7 BF645MP-S-6 BF645MP-V-6 BF645MP-E-6

Exploded Drawing and Legend

Exploded Drawing and Image



View AllClose

Additional Information

Size (inches):
2.00 (2")
Material Type:
316L Stainless Steel
Pressure Rating (psi):
145
Product Type:
Spring Check Valve
Category Type:
Sanitary Valves
Style:
Silicone Seat
Specifications or Standards:
3-A
End Connection:
Clamp End
Weight (lbs):
3.5
Additional:
From Import
Industry Crossover:
W645MP-S-2
