10 in. Unpolished 90° Short Weld Elbow (2WCL-UNPOL) 316L Stainless Steel Tube OD Buttweld Fitting
- SKU:
- BF62WCL-10-1
- Availability:
- Available
- Weight:
- 23.50 LBS
Description

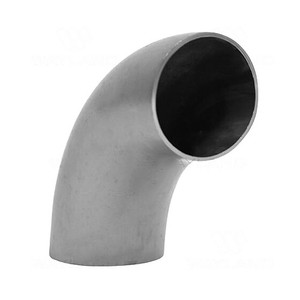

Unpolished 90° Weld Elbow (2WCL-UNPOL)
This 90° weld elbow is available in 304 or 316L stainless steel. This precision crafted sanitary butt-weld 90° elbow features a standard machine unpolished finish. This unpolished elbow is used to change flow direction in many applications across many industries when a sanitary finish is not required.
- Available in 304 and 316L
Product Data Table:
Tube O.D. | A | R | 304 Stainless Steel Part Number | 316L Stainless Steel Part Number |
1/2" | 1.125 | 1.125 | -- | BF62WCL-50-1 |
3/4" | 1.125 | 1.125 | -- | BF62WCL-15-1 |
1" | 1.500 | 1.500 | BF42WCL-1-1 | BF62WCL-1-1 |
1-1/2" | 2.250 | 2.250 | BF42WCL-15-1 | BF62WCL-15-1 |
2" | 3.000 | 3.000 | BF42WCL-2-1 | BF62WCL-2-1 |
2-1/2" | 3.750 | 3.750 | BF42WCL-25-1 | BF62WCL-25-1 |
3" | 4.500 | 4.500 | BF42WCL-3-1 | BF62WCL-3-1 |
4" | 6.000 | 6.000 | BF42WCL-4-1 | BF62WCL-4-1 |
6" | 9.000 | 9.000 | BF42WCL-6-1 | BF62WCL-6-1 |
8" | 12.000 | 12.000 | BF42WCL-8-1 | BF62WCL-8-1 |
10" | 15.000 | 15.000 | BF42WCL-10-1 | BF62WCL-10-1 |
12" | 18.000 | 18.000 | BF42WCL-12-1 | BF62WCL-12-1 |
Part Number Cross Reference:
Wayland | Alfa Laval | Dixon | VNE | Topline | Sanitary Solutions |
W2WCL | 2WCL | B2WCL | E2WCL | 2WCL | SS2WCL |
Additional Information
Size (inches): |
10.00 (10") |
Material Type: |
316L Stainless Steel |
Product Type: |
90° Elbow |
Category Type: |
Tube OD Fittings |
Style: |
2WCL |
Finish: |
Unpolished |
End Connection: |
Weld x Weld |
Weight (lbs): |
23.5 |
Additional: |
From Import |
