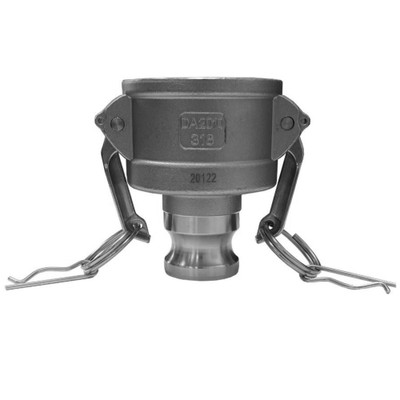

2 in. Female Camlock x 1-1/2 in. Male NPT Threaded - Type BR Reducer - 250 PSI - 316 Stainless Steel Reducing Camlock

• Description:
• One side of this Reducing 2" x 1-1/2" Type BR will couple with a 2" Male Camlock.
• The other side of this adapter will thread into a 1-1/2" Female NPT Thread.
• To connect, slide the 2" Female portion over a 2" Male Camlock Adapter and then close the Cam arms.
• To disconnect, open the Cam Handles and remove Adapter.
• Used to reduce the Male NPT Thread of a 2" Type B Female Coupler from 2" down to 1-1/2".
• Used when increasing or reducing the pipe line size from 2" to 1-1/2".
• This Adapter Allows a 2" Male Camlock to connect with a 1-1/2" Female Thread.
• 316 Stainless Steel Camlock

• Also Known As:
• Cam and Groove Type B Jump Size 2" Coupler x 1-1/2" Male NPT.
• Stainless Steel Type BR Reducer 2" Female Camlock x 1-1/2" Male NPT.
• 2" x 1-1/2" Type BR Camlock Reducer.
• Stainless Steel 2" x 1-1/2" Reducing Type C.

  Alternate Options:
• A Type B with smaller threads can be made using a 2" Type B, a 2" x 1-1/2" Bell Reducer and a 1-1/2" Close Nipple.
• This part can also be formed by using a 2" Type D, a 2" x 1-1/2" Reducing Bushing and a 1-1/2" Close Nipple.

Specifications:

• Material Stainless Steel 316
• Size 2" Female Cam x 1-1/2" Male NPT
• Working Pressure 250 PSI
• Handles: Stainless Steel 304
• Gasket: Buna N (Buna Nitrile)
• Thread: 1-1/2" Male NPT
