DK-Lok USA

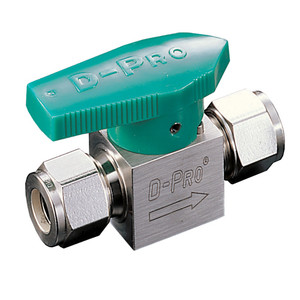

1/2 in. Tube OD x 1/2 in. Tube OD- 2,000 PSIG 316 Stainless Steel Series V23 Compression Plug Valve
(No reviews yet)
Write a Review
- SKU:
- V23B-D-8T-S
- Availability:
- Available
- Weight:
- 0.70 LBS
Description
Features:
DK-Lok plug valves provide positive shut-off, high flow capacity, and quick quarter-turn operation. This plug valve provides flow throttling capability.
- Quarter-turn operation
- Unique forward flow throttling
- Low torque operation
- Unidirectional flow
- Pressure Rating up to 3,000 psig (206 bar)
- Temperature Rating: -10 to 400 °F (-23 to 204 °C)
- Every V23 series plug valve is factory tested for shutoff at 600psig (41.3 bar).
Connection::
Tube O.D. x Tube O.D.
PDF / Specs / Brochure:** CAD / STEP / DXF / 2D SALES DRAWING / 3D FILES ARE AVAILABLE UPON REQUEST
** COC Available
* These tube fittings intermix and interchange with all major brands of compression tube fittings.
* Dimensions are for reference only and subject to change.
Additional Information
Size (inches): |
.500 (1/2") |
Material Type: |
316 Stainless Steel |
Pressure Rating (psi): |
2000 |
Product Type: |
Tube Plug Valve |
Category Type: |
Industrial Valves |
End Connection: |
Tube OD x Tube OD |
Category Type: |
Compression Valves |
Weight (lbs): |
0.7 |
Additional: |
From Import |
Country of Origin: |
South Korea |
