BFO Select

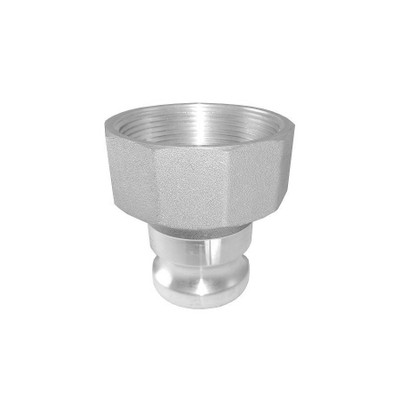

2 in. Male Cam x 1-1/2 in. Female NPT Thread - 250 PSI - Type AR Adapter x Female NPT - Aluminum Reducing Camlock
(No reviews yet)
Write a Review
- SKU:
- BFAR2015-AL
- Availability:
- Available
- Weight:
- 0.55 LBS
Frequently bought together:
Description
Applications / Specifications:
Type AR Adapter x Female NPT
Aluminum Reducing Male Camlock x Female NPT Thread
Aluminum Reducing Male Camlock x Female NPT Thread
- Description:
- The Type A Reducer Adapter x Female NPT Thread is a Male Adapter x Female Thread of a different size.
- Uses:
- Used whenever the Male Camlock portion or the Female Threaded portion needs to be changed to a different size.
- Used when increasing or reducing the line size.
- What it connects to:
- The camlock portion will connect to a Female Coupler.
- The threaded portion will connect to a Male NPT Thread.
- Also Known as a:
- Cam and Groove Type A Jump Size Male Adapter x Female NPT.
- Type AR Reducer Male Camlock x Female NPT.
- Type AR Camlock Reducer.
- Reducing Type A
- Alternate Options:
- A Reducer Type A with smaller threads can also be made using a Type A and a Reducing Bushing.
- This part can also be formed by using a Type F and a Bell Reducer.
- Sizes:
- The Aluminum Type A Adapter Reducer is offered in various sizes from 2" up to 4".
- Material:
- Aluminum
Gaskets:
Aluminum camlocks come standard with a Buna gasket. Additional gasket materials can be found and purchased here.
Additional:
Dimensions are for reference only and subject to change.
Additional Information
Size (inches): |
2.00 (2") |
Size (inches): |
1.50 (1-1/2") |
Category Type: |
Reducing Camlocks |
Material Type: |
Aluminum |
Product Type: |
Type AR Adapter |
End Connection: |
Male Cam x FNPT |
Additional: |
From Import |
Brand: |
BFO Select |
